Three things are critical for a gasoline engine to start and run correctly: Air, Fuel, and Spark. If there is a problem in the supply of any of the elements, the engine will not run properly or not run at all.
For instance, bad fuel pressure can cause an engine failure. High or low fuel pressure affects the air-to-fuel ratio in the combustion chamber.
Thankfully, you can troubleshoot and diagnose fuel pressure issues in an engine using a fuel pressure tester.
In this article, we explore some of the best fuel pressure testers for gasoline engines.
But first, let’s understand the different types of fuel delivery systems in petrol engines. This information is critical to getting the right testing kit.
Table of Contents
Types of Fuel Delivery Systems In Gasoline Engines
There are two types of fuel delivery systems in gasoline engines: a carburetor system and a fuel injection system.
Both systems utilize the vacuum created by the piston in the intake stroke to draw in air. But to mix air with fuel, a carburetor system uses a venturi mechanism. As intake air flows through the venturi pipe in the carb, it creates a vacuum that draws fuel from a small reservoir to create a fuel-to-air mixture which enters the combustion chamber.
Check out this video of how a carburetor works
In contrast, a fuel injection system uses injectors to spray pressurized gasoline directly into the combustion chamber or in the intake manifold.
Fuel injectors are basically electronically controlled valves that control the amount of fuel that mixes with intake air. They also help to control the timing of fuel delivery to ensure optimal engine performance.
Signs of Bad Fuel Pressure
For a fuel injector to work properly, the fuel system must have sufficient pressure. Otherwise, if the fuel pressure is bad you will have a bad fuel injector spray pattern and the engine will run rough.
Other signs of an engine with bad fuel pressure – either high or low include:
- Difficulty starting the engine or hard start
- Rough idle
- Black smoke from the exhaust
- Poor fuel economy
- General engine performance issues such as hesitation, surging, and loss of power
- The smell of gas inside the car
You might also get a check engine light, especially on modern vehicles.
However, it is important to note that different components in the fuel delivery system can show the same symptoms when they fail. Even poor compression in the cylinder can have similar symptoms.
So, you should be deliberate about diagnosing the fuel system of an engine. And this is where a fuel pressure tester comes in.
A fuel pressure tester is a diagnostic tool for checking the fuel pressure in a fuel system. It enables you to troubleshoot and diagnose various issues related to the fuel delivery system.
Some of the problems you can troubleshoot when you do a fuel pressure test include a weak fuel pump, a clogged fuel filter, or a malfunctioning fuel pressure regulator.
Testing the fuel pressure can also help detect fuel leaks in the system as well as blocked/restricted fuel lines, among other issues.
But to get the diagnosis correctly, you must use a proper fuel pressure tester. In this article, I share some of the best fuel pressure tester kits for gasoline engines.
Best Fuel Pressure Tester Kits
Factors to consider
There are many brands of fuel pressure testers available on the market. To streamline our search for the best options, we narrowed our focus to the following key factors:
1) Price
Our first constraint was the price!
Quality tools often come with a high price tag but sometimes you can get high-quality tools at a bargain. And having bought many great garage tools at affordable prices in the past, we knew we would find high-quality fuel pressure testers without breaking the bank.
So, we put our budget cap at $100.
Luckily, most of the options we found cost way less than that. This was good news for the pocket but it presented a challenge for decision making.
And this invited the second constraint: what accessories come with the tester kit?
2) Accessories included
For you to test fuel pressure in your car, you need accessories to hook the testing gauge to the fuel line. The accessories include hoses and adapters. And since most vehicles don’t have a fuel pressure testing port, you might need some fittings as well.
A crucial fitting you need in the fuel tester kit is the T-joint. It enables you to attach the fuel gauge to the fuel line without restricting the flow of fuel to the engine.
But for vehicles with a testing port on the fuel rail, you will need only an adapter to fit the gauge to the Schrader valve.
Generally, a fuel pressure gauge with one adapter is good enough for testing a fuel system that has a testing port valve. But if your car’s fuel line doesn’t have a test port or you are looking for the best fuel pressure tester kit for garage, you need one that comes with multiple adapters and fittings.
Also, it is always a big plus if a tool kit comes with a carry case. Making carrying and storage easier.
Another factor we looked at was the measuring range of the fuel pressure gauge.
3) Measurement range
Typically, the fuel pressure in gasoline cars is below 70 PSI or 482 kPa. So, any fuel pressure gauge with a max measurement range of 100 PSI is good enough.
But if you are a professional mechanic dealing with a multitude of fuel systems, you can choose a kit that offers a bigger range. Not very important though.
The last factor we looked at was customer feedback.
4) Customer feedback
At Toolever, we avoid bias in our reviews by incorporating customer feedback. In this article, we analyzed customer feedback for each tool and used it to inform our choices.
Furthermore, we considered tool kits with an aggregate rating of 4.5/5 or higher to ensure a selection of the top-rated fuel pressure testers only.
After considering the above key factors (price, accessories, measurement range, and customer feedback), our search for the best fuel pressure testing kits resulted in the following top 4 options:
- Betooll Digital Fuel Injection Pressure Tester – Best for garage use
- OTC 5630 Fuel Pressure Tester – Best for vehicles with fuel pressure testing port
- Innova 3640 Fuel Pressure Tester – Best for vehicles without testing port
- HFS (R) Carburetor Fuel Pressure Tester – Best for carburetor fuel system
Below is a comprehensive review of each kit. Continue reading…
BETOOLL Digital Fuel Injection Pressure Tester – Best for professional mechanics
The Betool digital fuel pressure tester is our most versatile kit. It comes with a gauge and numerous adapters and fittings. Everything comes packed nicely in a blow-molded carry case.
The most outstanding features of the Betool fuel pressure testing kit are:
- the digital gauge that is easy to read. It displays pressure readings in up to 4 units (PSI, kPa, BAR, and KG/cm3) and you can easily switch between the units using a button.
- a ton of adapters and fittings to do almost all fuel systems.
- the measuring range of up to 300 PSI
- a carry case that keeps everything intact during storage or transportation.
Overall, the Betool kit is the most versatile fuel pressure tester set that can work with different types of fuel systems. It is easy to use and read. The only major drawback is that when the battery runs out, you cannot use the kit.
OTC 5630 Fuel Pressure Tester Kit – Best for cars with test port
OTC tools are popular in car diagnostic tools and the OTC 5630 fuel pressure tester is one of them. It is a nice simple kit that includes a Schrader valve adapter, a fuel pressure gauge, and a pipe.
The tester is well built with a rubber boot on the gauge to absorb shock and keep it from sliding when you place it on the windscreen as you carry out the test.
The kit does not come with pipe fittings. So, you can only use it on cars that have a test port on the fuel line. The adapter is standard size and will only fit on fuel systems that have small Schrader valve ports such as Ford.
The adapter failed to fit the test ports of GM and Chrysler cars because they have a large Schrader valve port.
Overall, the OTC 5630 fuel pressure test kit is an excellent choice for checking fuel pressure in fuel systems that have a standard size Schrader valve test port. However, its price is quite when you consider its limitations.
Innova 3640 Fuel Injection Pressure Tester – Best of vehicles without test port

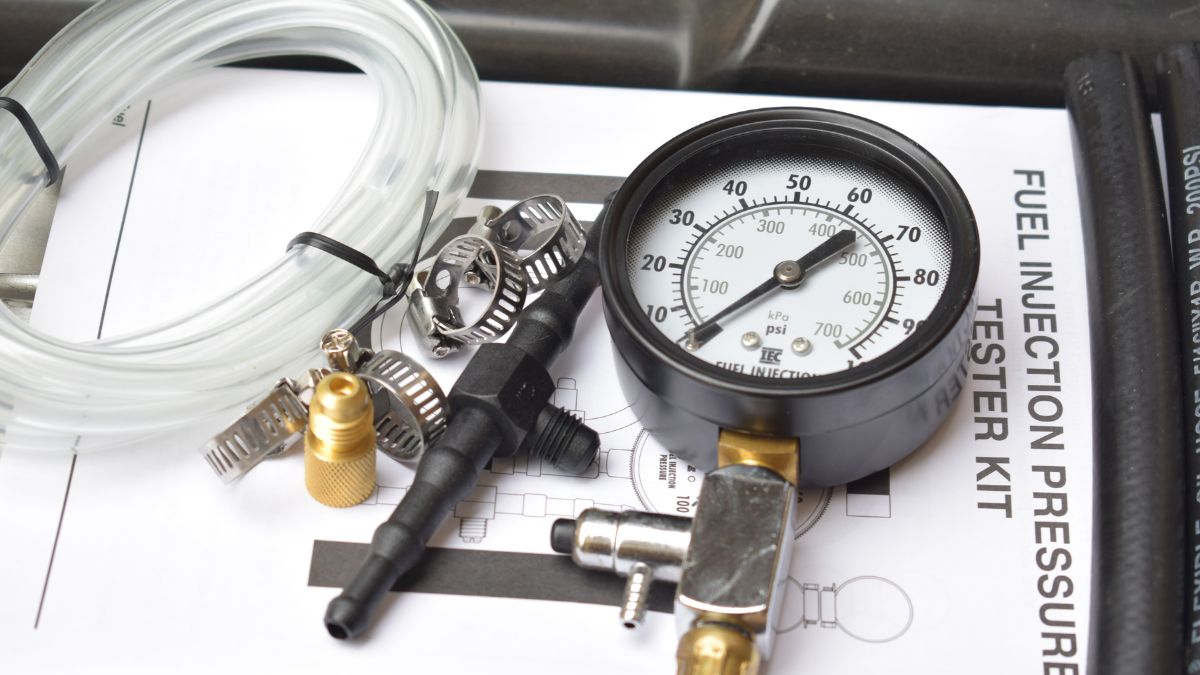

The Innova 3640 fuel injection pressure is the most affordable kit. It comes with a few accessories including a brass adapter, plastic Tee fitting, and hoses.
The adapter enables you to connect the gauge to a fuel test port of vehicles. Some of the vehicles we have connected this adapter effectively include the Chevrolet blazer, BMW E46, Honda Civic, and many others.
On the other hand, the Tee adapter enables you to tap into the fuel line on vehicles that do not have a testing port. This makes the kit versatile and usable with many local and imported cars. Though it is made of plastic, the T-joint feels sturdy.
We have used this kit to diagnose fuel delivery issues on various vehicles including Jeep, Ford, Honda, Chevy, Subaru, and Dodge.
Check out our video below, where we use the Innova 3640 fuel injection pressure tester to troubleshoot the fuel system of ’06 Subaru Impreza.
Overall, the Innova 3640 is a versatile budget fuel pressure tester kit. It is a perfect choice for a shadetree mechanic. But it has a few drawbacks such as the lack of a rubber cover to protect the gauge from impact and lack of a carry case.
HFS (R) Carburetor Fuel Pressure Tester – Best for carburetor systems
As I mentioned, a gasoline engine either uses a carburetor or fuel injectors to deliver fuel to the combustion chamber. While modern cars use fuel injection systems, small engines (2-stroke) and most old cars use a carburetor.
You need a fuel pressure tester for carburetor a.k.a vacuum gauge to test and tune carburetor systems. For this task, our top pick is the HFS carburetor tester kit.
It comes with a 1/8″ hose and adapters to fit 1/8″, 1/4″ and 3/8″ NPT, plus a couple of tee fittings. All accessories are nicely packed in a blow mold carry case.
What makes this kit stand out is the meter gauge which has a large dial with easy-to-read numbers. There is also basic information on the gauge to explain what the reading means. Moreover, the dial has a rubber cushion to protect the meter from bumps.
The only major drawback with this kit is that the vacuum gauge might come with the needle off zero. Luckily, you can reset the gauge quite easily using these simple steps.
How to reset the carburetor vacuum gauge needle
- Pry back the rubber cover and remove the lens using a small flathead screwdriver.
- Use the same screwdriver to adjust the screw on the gauge face, causing the needle to move.
- Apply and release vacuum while making small adjustments to observe where the needle lands.
- Once the needle rests on the zero mark, the gauge is set.
- Reassemble the parts, ensuring they are securely fitted together.
- Your vacuum gauge is now ready to be used for tuning the engine’s carburetor system.
Conclusion
There you have it!
To recap, there are two types of fuel delivery systems in gasoline engines: carburetor system and fuel injection system. You need to know the type of fuel system in your engine to choose the right fuel pressure testing kit.
Also, it is good to know if your vehicle has a fuel pressure testing port so that you will know the accessories you need. If you are not sure, a versatile kit that has an adapter fitting for Schrader valve port and Tee fittings.
The above fuel pressure testing kits are our top choices for various purposes. Betooll, OTC 5630, and Innova 3620 are the top-of-the-line fuel injection systems and HFS kit for carburetor systems. The Lisle 20300 vacuum gauge is also a great choice for carb systems but it does not come with many accessories.
Frequently Asked Questions
Can you use fuel injection pressure testers to test carburetor systems?
You cannot use a fuel pressure tester for carb on a fuel injection system or vice versa because the operating pressure ranges are different. Carburetors operate in low fuel pressure ranges (17 – 22 PSI) than injection systems (above 35 PSI).
